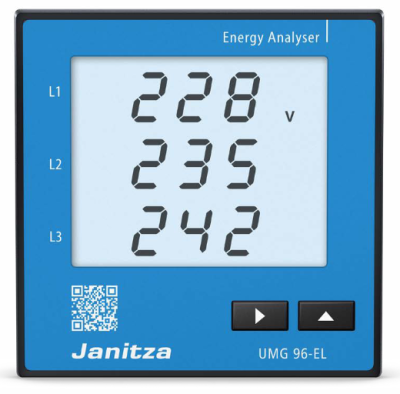

UMG96-EL, 24-90V (UL)

The high-quality power analyser UMG 96-EL with a power supply range of 24V–90V offers reliability, precise measurements, and easy integration into energy systems. With Ethernet support and TCP/IP and UDP/IP protocols, it is ideal for efficient energy management and operational optimization.

Technical Specifications:

Power Supply:

• 24V–90V AC (50/60 Hz).
• 24V–90V DC.
• Measurement category: 300V CATIII.

Voltage Measurement:

3 measuring channels:

• L-N: 20V–300V.
• L-L: 34V–520V.
• Frequency range: 45Hz–65Hz.

Current Measurement:

• 3 channels (range: 0–5A).
• Sensitivity: from 5mA.

System Support:

• Three-phase 4-conductor systems with grounded neutral conductor (max. 277V / 480V).
• Three-phase 3-conductor systems ungrounded (max. 480V).
• Single-phase 3-conductor systems with grounding (max. 220V–440V).
• Single-phase 2-conductor systems with grounding (max. 220V).

Communication Capabilities:

• Interface: Ethernet.
• Protocols: TCP/IP, UDP/IP.
• Push-Service Function for automatic data transmission to the system.

Software and Accessories:

• GridVis Essential Software for configuration and visualization – free to download at:
  www.janitza.de/gridvis-download.html.
• Optional accessory: Accessory Kit UMG96-EL (Code: 52.35.250).

Package Contents:

• Safety instructions and a quick start guide with Software-GridVis.

UMG 96-EL is a practical solution for monitoring and analyzing electrical systems, suitable for a wide range of applications. Ensure efficient energy management and safe operation with this professional tool
