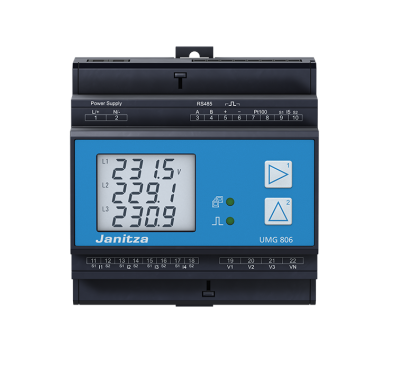

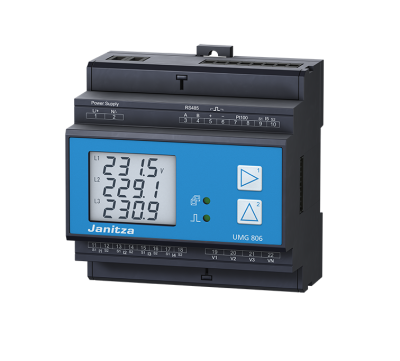

UMG 806(LP)

The UMG 806 energy measurement device offers the right solution for various requirements. The high-performance basic device is ideally suited for cost-oriented applications and features Modbus RTU. It offers the ability to both measure and record residual currents, among other features. Continuous monitoring of the residual current enables dangerous fault currents to be detected at an early stage, thereby avoiding damage to the system as well as production downtimes. The UMG 806 can be enhanced with one module: the Ethernet communication module.

An added plus is the compact design of the measurement device and the module. This allows optimal usage of the typically scarce space available in the switchboard cabinet.

The UMG 806 energy measurement device offers you optimum flexibility and adaptability thanks to its two available variants: the UMG 806-LP and the UMG 806.

UMG 806-LP

The UMG 806-LP offers measuring inputs for the connection of low-power converters. These converters are characterized by a very low secondary-side voltage output. Due to the low signal on the converter cable, the secondary side of the converter does not have to be short-circuited in open operation. This increases safety during installation and simplifies the installation process considerably. In addition, low-power converters offer price advantages over many conventional converter models in terms of consumption, making them a cost-effective alternative.

• Universal energy meter UMG 806-LP
• Top-hat rail mounting, 90 x 90 x 63.5 mm (WxHxD)
• Power supply: AC/DC (100-300) V
• Measurement in TN, TT and IT networks
• Measurement of harmonics up to 31.
• 3 voltage measurement inputs
• Measurement category: 300 V CAT III
• Measurement in 3-phase 4-conductor systems up to 230 V/400 V
• 4 current measurement inputs
• Measurement category: 300V CAT II
• Nominal input signal .. / 333 mV
• Measuring range: 0.3 ... 400mV rms
• Resolution: 0.00333 mV
• Peripherals:
• 1x pulse output
• 1x temperature input
• 1x analog inputs for differential and PE current measurement
• 1x RS485 (Modbus RTU)
• Accessories (included):
• 33.03.382 Installation instructions incl.
• Safety instructions and "Software-GridVis" quick start set Connection plug Programming software "GridVis Basic" download: www.janitza.de/gridvis-download.html

• 806-EC1 MODULE

  • The Ethernet communication module enables enhancements to support the following protocols:

    • Modbus-TCP
    • SNMP V2c
