UMG 512-PRO
The UMG 512-PRO is a class A certified power quality analyzer per IEC 61000-4-30. Power quality parameters such as harmonics up to the 63rd harmonic, flicker, short term interruptions, etc., are measured with class A. Certified measurement processes with high accuracy of measurement are applied to check the power quality according to EN 50160 at the PCC as well as in the internal supply network according to EN 61000-2-4.
Class A
Measuring devices in class A are certified to the IEC 61000-4-30 standard. It provides detailed specifications that a mains analyzer must meet so that the results can also be consulted in case of disputes.
The standard defines the necessary parameters, suitable measurement methods, accuracy and bandwidths. This makes it possible to easily reproduce and compare results.
Power quality
Reliable operation of modern plants and systems always demands a high degree of supply reliability and good power quality.
UMG measuring devices reliably record, analyse and document all interferences such as harmonics, unbalance, transients, voltage dips, voltage swells, flickers, phase shifts and reactive power.
BACnet
BACnet is one of the most important communication standards for building technology, mainly due to its compatibility with the most diverse hardware and its uniform communication with devices from various manufacturers.
As soon as a UMG measuring device has received its BACnet ID and is integrated into the network, the system recognises it and displays it in the browser. This makes configuration very easy.
Ethernet-Modbus-Gateway
The Ethernet Modbus gateway can be used to easily include the Modbus RTU devices that are connected to the master device as slaves in an Ethernet architecture. This is also possible via a Modbus RTU interface for devices with identical file formats and matching function codes.
Residual Current Monitoring (RCM)
Powerful RCM residual current monitoring already detects leakage currents in their initial stages before they cause system failures or even fires. It is already integrated in certain UMG measuring devices. The measuring current transformer that is required can be installed manually at a later date if required.
Continuous RCM monitoring increases the system safety and availability significantly. In specific applications such as the data centre, residual current monitoring is essential due to the high availability requirements.
Measuring devices homepage
The web server for the measuring device provides a wide range of data in a user-friendly format. The user does not have to install any software on their PC; a conventional web browser is all that is required. The user enters the measuring device IP address in the browser's URL bar and the measuring devices homepage is displayed on the screen. In addition to the modern homepage, APPs are available for an extended range of functions.
- Harmonics analysis up to the 63rd harmonic, even / odd (U, I, P, Q)
- Interharmonics (U, I)
- Distortion factor THD-U / THD-I / TDD
- Measurement of positive, negative and zero sequence component
- Unbalance
- Direction of rotation field
- Voltage crest factor
- Flicker measurement in accordance with DIN EN 61000-4-15
- Logging and storage of transients (> 39 µs)
- Short-term interruptions (> 10 ms)
- Monitoring start-up processes
- Constant true RMS measurement
- Measurement process in accordance with IEC 61000-4-30
- Certified accuracy of measurement according to class A
- Continuous sampling of the voltage and current measurement inputs at 25,6 kHz
- 512 measurement points per period
- Recording of over 2,000 measured values per measurement cycle
- Accuracy of active energy measurement: Class 0.2S
- Fast measurement even enables the logging of rapid transients from 39 µs
- Logging of currents and voltages (15 – 440 Hz)
- High resolution colour graphical display 320 x 240, 256 colours, 6 buttons

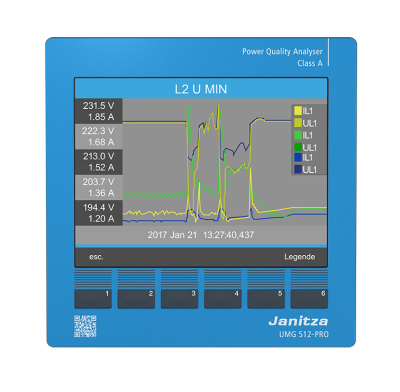

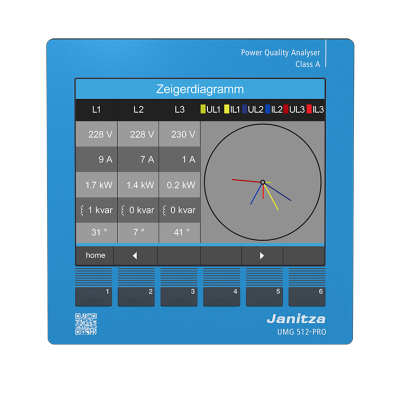

User-friendly, colour graphical display with intuitive user guidance
- User-friendly, self-explanatory and intuitive operation
- Backlight for optimum reading, even in darker environments
- Illustration of measured values in numeric form, as a bar graph or line graph
- Clear and informative representation of online graphs and power quality events
- Multilingual: German, English, Russian, Spanish, Chinese, French, Turkish ...
RCM
- Continuous monitoring of residual currents (Residual Current Monitor, RCM)
- Alarming in case a preset threshold fault current reached
- Near-realtime reactions for triggering countermeasures
- Permanent RCM measurement for systems in permanent operation without the opportunity to switch off
- Ideal for the central earthing point in TN-S systems
BACnet protocol for building communication
- Optimal interoperability between devices from various manufacturers
- Predefined BIBBs (BACnet Interoperability Building Block)
- BACnet is optionally available with UMG 512-PRO
- UMG 512-PRO supports the device type B-SA with the BIBBs DS-RP-B and DS-WP-B
- Furthermore, the BIBBs DS-COV-B and DM-UTC-B are also supported

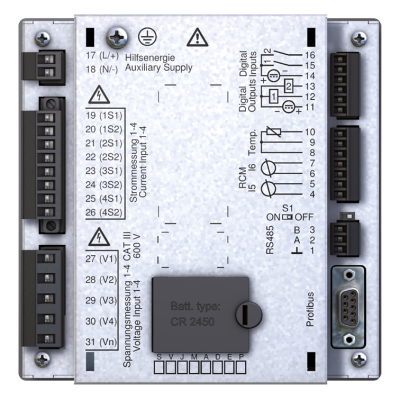

Comprehensive communication and connection possibilities
- 4 voltage and 6 current measurement inputs
- 2 digital inputs, e.g. as data logger for S0 meter
- 2 digital outputs for alarm message or e.g. for connection to a BMS or PLC
- Free name assignment for the digital IOs, e.g. if used as data logger
- Modbus
- Profibus
- Ethernet (TCP/IP)
- Digital IOs
- BACnet (optional)
- Configurable Firewall
Large measurement data memory
- 256 MB data memory
- Memory range up to 2 years (configuration-dependent)
- Individually configurable recordings
- Recording averaging times can be freely selected
- PQ recordings template preconfigured for conventional standards (e.g. EN 50160)
- User-defined memory segmenting possible
| Rated voltage | L-N: 347 V AC, L-L: 600 V AC |
|---|---|
| Power voltage | 95-240V AC, 80-300 V DC |
| Measurement type | 4-quadrant |
| Distortion factor THD-U, THD-I | YES |
| Overvoltage category | 600 V CAT III |
| Current measurement channels | 4+2 |
| Digital inputs | 2 |
| Digital / pulse output | 2 |
| Communication interface | RS-485, Profibus DP, Ethernet, Webserver / email |
| Memory | 256 MB Flash |
| Sampling frequency 50/60 Hz | 25,6 kHz |
| Connection (L-N, L-L) | 3 / 4 - conductive |
| Number of measurement records per second | 25.600 |
| Measuring results per second | 5 |
| Transients | 39 µs |
| Flicker measurement | YES |
| Clock | YES |
| Accuracy V / A | 0,1 % / 0,1 % |
| Width [mm] | 144 |
| Height [mm] | 144 |
| Depth [mm] | 81 |
| Weight in [g] | 1000 |
| Active energy accuracy class (kWh, .../5A) | 0,2S (.../5 A) |
| Integrated logic | Jasic (7 Prg.) |
| Number of stored values in memory | 10.000 k |
| Software | GridVis - Basic |
| Protocols | Modbus RTU, Modbus - Gateway, Profibus DP V0, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP, BACnet (volitelný) |
| RMS value of periods (50/60 Hz) | 10/12 |
| Uninterruptible measurement | YES |
| Residual current measurement | YES |
| Consecutive / backward / null component | ANO |
| Measuring asymmetry | YES |
| Recording of error events | ANO |
| Bi-metallic function | ANO |
| Weekly timer | ANO |
| Operating hours counter | ANO |
| Short-term event outages (recording) | ANO |
| Input for temperature measurement | 1 |
