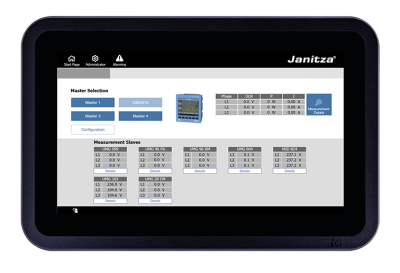

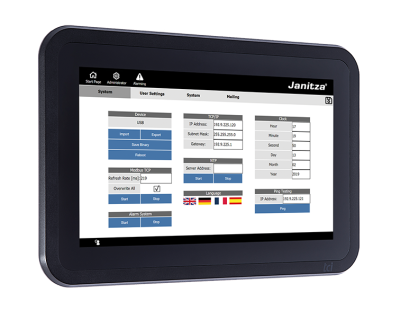

Smart Energy Panel JPC100-WEB

Smart Energy Panel JPC 100-WEB Overview - 1506358 Visualisation of the Energy measured values up to 93 devices The Smart Energy Panel JPC 100-WEB is used for optimum, central display and monitoring of energy measured values. Modbus slave devices (e.g. Janitza UMG 103-CBM) are integrated either via the gateway function of the master device or directly via the RS-485 interface. The clear 10-inch touchscreen is characterised by its simple and user-friendly menu navigation.

Order number: 1506358

Add to compare list Add to favourites

The Smart Energy Panel JPC 100-WEB is used for optimum, central display and monitoring of energy measured values. Modbus slave devices (e.g. Janitza UMG 103-CBM) are integrated either via the gateway function of the master device or directly via the RS-485 interface. The clear 10-inch touchscreen is characterised by its simple and user-friendly menu navigation.

Measurement data independent of location

Direct ac- cess to the device homepage, optionally also via remote access, is provided by the web capability of the Smart Energy Panel. Remote access is also possible via Team- Viewer. A USB connection provides for simple export of the measurement data.

Analysis and documentation

With the GridVis® software the energy data can be evaluated, documented and further processed. GridVis® offers comprehensive reporting for this purpose.

Alarm management and data storage

The clear pre- sentation of threshold value exceedances enables hazards to be identified at an early stage. In addition, the e-mail notification function can be activated in the event of viola- tions. Initially defined threshold values for voltage, current and power can be filtered, acknowledged and stored. The storage of minimum and maximum values is also possible.

Display of all current and energy measured values
Display and storage of the last minimum and maximum values
Topology view of the connected devices
Visualisation of the main and ancillary measurements
Dynamic topological configuration of up to 93 devices
Group transfer of the configuration
Plug & Play configuration via USB: import and export of device configurations
Labelling of the individual measurement channels, threshold values can be set per channel, etc.
Factory pre-configured
Integrated alarm management
Acknowledgement of pending alarms
Saving of historical alarms
E-mail notification
Password-protected display
Creation of a hierarchical user structure
User rights
Display of the device homepage
Export of measurement data via USB
Optional remote access
Access to master and slave devices via GridVis®
Reporting function

Power voltage [V]	24 V DC
Width [mm]	282
Height [mm]	184
Depth [mm]	35
Weight in [g]	900
Software	GridVis - Basic
Communication interface	RS-485
Protocols	Modbus master
