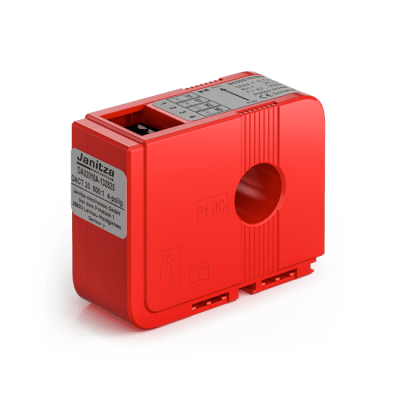

RCM DACT 20

RCM DACT 20 is a residual current transformer of type A from Janitza, designed for detecting very small currents in electrical systems. Its compact design allows for easy installation and integration with Janitza measurement devices.

Key Features:

• Detection of Small Currents: Enables precise measurement of residual currents, essential for monitoring and protecting electrical systems.
• Compact Design: Simplifies installation, even in confined spaces.
• Transformation Ratio: 600/1
• Maximum Primary Residual Current: 18 A
• Compatibility: Suitable for use with UMG 96RM-E, UMG 96RM-PN, UMG 509-PRO, UMG 512-PRO, and UMG 20CM.

Technical Specifications:

• Maximum Conductor Diameter: 4 x approx. 8 mm (rm-10 mm²) or 8 x 5.5 mm (rm-6 mm²)
• Dimensions: 82 mm (width)
• Maximum Busbar Size: Up to 20 mm
